Richard Lange, F. A. Lange’s first-born son, can take credit for numerous inventions and patents that had a decisive impact on the evolution of precision horology. His most important discovery is still relied on today in nearly all high-quality mechanical watches: the admixture of beryllium in balance-spring alloys. In 1930, Richard Lange was granted a patent for this invention, which redefined the benchmark in timepiece precision.

Richard Lange (1845-1932)

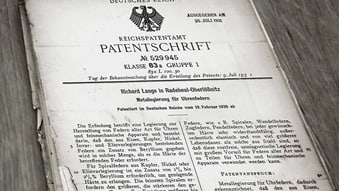

Patent application No. 529 945 filed in 1930 and entitled “Metal Alloy for Watch Springs”

Patent application No. 529 945 filed in 1930 and entitled “Metal Alloy for Watch Springs”

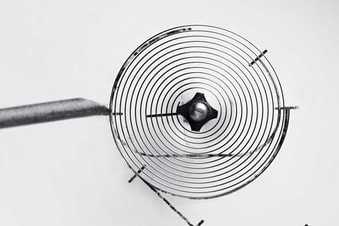

The balance spring, or hairspring, is the heart of a mechanical watch and as such directly responsible for its rate accuracy. Depending on the spring type, a thickness deviation of merely 0.001 millimetres will cause the watch to be off by about 30 minutes per day. Accordingly, the manufacturing tolerance is an incredible 0.0005 millimetres. The production of balance springs is one of the most complicated processes in precision watchmaking. Only a handful of watchmaking companies master the operations, among them the Lange manufactory, where particularly high quality standards are attained. At A. Lange & Söhne, a special mathematical formula is used to determine the optimal hairspring for each individual calibre.

REVIEW: THE BALANCE SPRING PRODUCTION – A. LANGE & SÖHNE

MATHEMATICAL PRECISION – GUIDED BY HAND

lange balance spring_DRAWING

PROCESS STEP 1:

At the beginning of the manufacturing process, the spring wire has a diameter of 0.5 millimetres. During the first step, it is drawn through diamond dies of varying sizes.

Depending on the watch model for which the hairspring is intended, the wire is drawn as many as 32 times. After the drawing sequence, the diameter of the wire for the RICHARD LANGE PERPETUAL CALENDAR “Terraluna”, for example, is a mere 0.059 millimetres.

lange balance spring_rolling

ROLLING

PROCESS STEP 2:

Now, the extremely thin wire is rolled flat to its final dimensions. After the rough and finish rolling passes, the wire has a thickness of 0.022 to 0.044 millimetres and a width of 0.08 to 0.17 millimetres, depending on the model.

At Lange, the tolerance is one ten-thousandth of a millimetre, a hundredth of the diameter of a human hair. In these minuscule dimensions, quality controls based on laser measurements are no longer sufficient. To verify compliance, it is also necessary to weigh a defined length of the strip with a precision balance.

lange balance spring_cutting

CUTTING AND COILING

PROCESS STEP 3:

In this step, the strip is first cut to the proper length and then coiled into its typical spiral shape. To achieve the exact spiral geometry, three to five strips are coiled together, again depending on the model. After annealing, the strips are separated from one another. Now, they have the precisely defined coil clearances they need to “breathe” (oscillate).

lange balance spring_annealing

ANNEALING

PROCESS STEP 4:

At this point, the tightly coiled strips are heated for 12 hours with controlled temperature cycling and then cautiously allowed to cool again. This causes them to retain their shape and gives them the required resilience.

The temperature cycle is permanently monitored, recorded and evaluated by instrumentation, because even the slightest deviations or disruptions would suffice to render the hairsprings unusable.

lange balance spring_bending

BENDING

PROCESS STEP 5:

At A. Lange & Söhne, the bend points of each hairspring are accurately determined according to a special algorithm. Under the microscope, the hairspring is secured to a template, allowing its end to be carefully bent with specially designed pliers. Bending requires extreme dexterity and rigour; only the most experienced hairspring truers are capable of mastering this challenging task.

alangesoehne-kombinieren

PAIRING

PROCESS STEP 6:

The last step involves matching the hairspring to the balance-wheel rim. To ensure the utmost in precision, a matching hairspring is selected for each and every rim. A highly sensitive frequency analyser reveals which hairspring and which rim make up a perfect pair – and thus are fit to be integrated in a Lange watch.

EXPLORE FURTHER

THE FUSÉE-AND-CHAIN TRANSMISSION
THE FUSÉE-AND-CHAIN TRANSMISSION
The fusée-and-chain transmission is one of the most effective complications when it comes to increasing the rate accuracy of a mechanical watch.
CONSTANT-FORCE ESCAPEMENT
CONSTANT-FORCE ESCAPEMENT
The purpose of a constant-force escapement in a mechanical watch is to provide the escapement with a consistent flow of power, regardless of whether the watch is fully wound or nearly unwound.
RATTRAPANTE MECHANISM
RATTRAPANTE MECHANISM
The development of the rattrapante function appeared to have ended until A. Lange & Söhne presented the DOUBLE SPLIT in 2004.
